OLEFINI AP-38

OLEFINI / Model

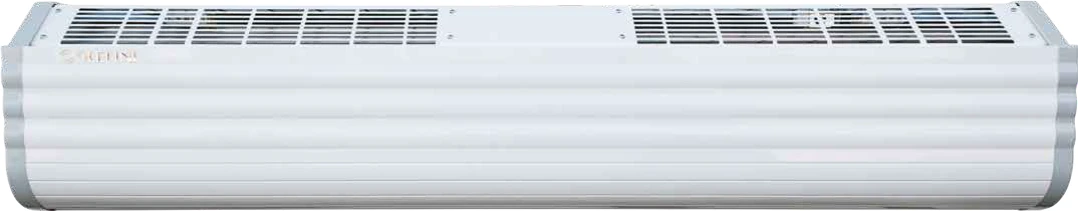

OLEFINI AP-38

OLEFINI AP-38 has a catalogue maximum door width of 2.00 m and maximum door height of 4.00 m. Listed air volume: 3850/3530/2890 m³/h. Confirm suitability for the actual opening and site conditions before selection.

Brand
OLEFINI
Category
Air curtains
Quotation
Contact Rapid Cool for pricing and delivery.

Technical overview

OLEFINI AP-38 technical information
Maximum door width2.00 m
Maximum door height4.00 m
OperationAmbient / unheated
Outlet velocity12 / 11 / 9 m/s
Air volume3850/3530/2890 m³/h
Motor power input660 W
Power supply230 V / 50 Hz / single phase

Dimensions & mounting

OLEFINI AP-38 dimensional drawing
Dimensions in mm. Click to enlarge.
OLEFINI AP-38 dimensions
L — unit length1985 mm
K — mounting distance600 mm
I — mounting distance1300 mm
Section width303 mm
Section height216 mm

Controls & accessories

OLEFINI infrared remote
Infrared remote
OLEFINI wired remote
Wired remoteWired control
OLEFINI cross-flow blower

Cross-flow blower

Ø120 mm diameter

BMS network connection diagram

BMS integration Optional

Modbus connection for ECO-equipped units requires an optional BMS network card.

Applications

  • Commercial entrances
  • Retail doorways

Selection support

Send the following details to Rapid Cool for OLEFINI AP-38 selection and pricing:

  • Opening width and mounting height
  • Control requirements, if any (door sensor, wired remote control or BMS integration)

Technical documents

OLEFINI Air Curtains CatalogueContact Rapid Cool for technical documentation.
