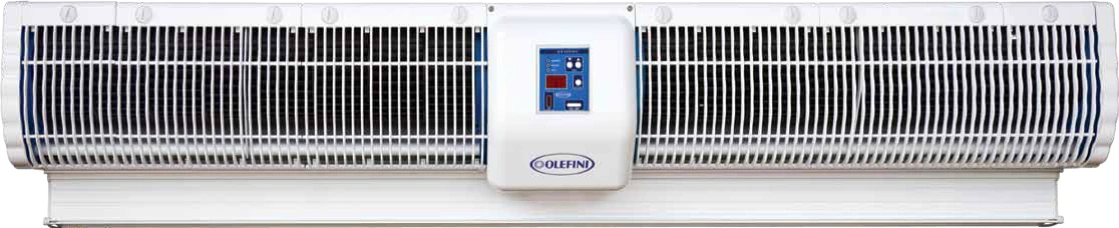

OLEFINI K-16 W

OLEFINI / Model

OLEFINI K-16 W

OLEFINI K-16 W has a catalogue maximum door width of 1.6 m and maximum door height of 2.5 m. Confirm suitability for the actual opening and site conditions before selection.

Brand
OLEFINI
Category
Air curtains
Quotation
Contact Rapid Cool for pricing and delivery.

Technical overview

OLEFINI K-16 W technical information
Maximum door width1.6 m
Maximum door height2.5 m
OperationAmbient / unheated
Air volume2000 / 1800 / 1600 m³/h
Motor power input240 W
Power supply230 V / 50 Hz / single phase
Noise level at 1 m60 / 53 dB(A)
Weight19 kg
Outlet velocity10 / 9 / 8 m/s
Ingress protectionIP20

Dimensions & mounting

OLEFINI K-16 W dimensional drawing
Dimensions in mm. Click to enlarge.
OLEFINI K-16 W dimensions
L — unit length1606 mm
W — width166 mm
H — height172 mm
l — outlet length1560 mm
w — outlet width54 mm
h — outlet height64 mm

Controls & accessories

OLEFINI ECO control panel
ECO panelOn-unit control panel
OLEFINI infrared remote
Infrared remote
OLEFINI optional wired remote
Wired remoteOptional
OLEFINI cross-flow blower

Cross-flow blower

Ø100 mm diameter

BMS network connection diagram

BMS integration Optional

Modbus connection for ECO-equipped units requires an optional BMS network card.

Applications

  • Commercial entrances
  • Retail doorways

Selection support

Send the following details to Rapid Cool for OLEFINI K-16 W selection and pricing:

  • Opening width and mounting height
  • Control requirements, if any (door sensor, wired remote control or BMS integration)

Technical documents

OLEFINI Air Curtains CatalogueContact Rapid Cool for technical documentation.

Get the right selection for your entrance

Send the clear opening width and height, installation position, quantity, project location and a photo or drawing. Tell us whether the entrance is exposed to wind or opens frequently. Rapid Cool can help select the required model and options with your enquiry.

Does this model provide heating?

OLEFINI K-16 W is an ambient, unheated air curtain. If heating is required, ask Rapid Cool to identify a suitable heated model.

What about finishes and controls?

For OLEFINI K-16 W, send any control, finish or mounting requirements to Rapid Cool so compatibility can be checked before ordering.
