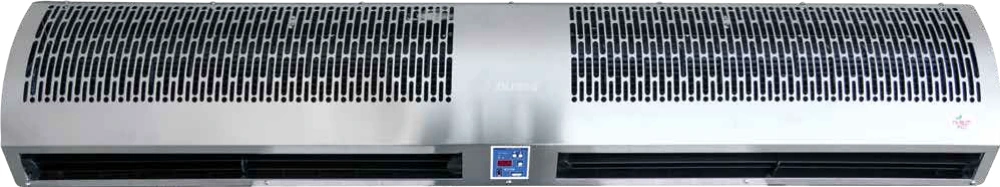

OLEFINI X-12
OLEFINI X-12 has a catalogue maximum door width of 1.2 m and maximum door height of 3.0 m. Listed air volume: 1810/1410/1000 m³/h. Confirm suitability for the actual opening and site conditions before selection.
OLEFINI / Model
OLEFINI X-10
OLEFINI X-10 has a catalogue maximum door width of 1.0 m and maximum door height of 3.0 m. Listed air volume: 1560/1210/850 m³/h. Confirm suitability for the actual opening and site conditions before selection.
- Product family / model
- OLEFINI X-10
- Brand
- OLEFINI
- Category
- Air curtains
- Quotation
- Contact Rapid Cool for pricing and delivery.
- OLEFINI category
- Commercial
Technical overview
| Maximum door width | 1.0 m |
|---|---|
| Maximum door height | 3.0 m |
| Operation | Ambient / unheated |
| Outlet velocity | 9 / 7 / 5 m/s |
| Air volume | 1560/1210/850 m³/h |
| Motor power input | 240 W |
| Dimensions (L × W × H) | 1080 × 202 × 203 mm |
| Power supply | 230 V / 50 Hz / single phase |
| Ingress protection | IP20 |
Applications
- Commercial entrances
- Shop doorways
Selection support
Send the following details to Rapid Cool for OLEFINI X-10 selection and pricing:
- Opening width and mounting height
- Control requirements, if any (door sensor, wired remote control or BMS integration)
Technical documents
OLEFINI Air Curtains CatalogueContact Rapid Cool for technical documentation.CONTINUE EXPLORING
