Introduction
When it comes to air movement in commercial, industrial and residential settings, choosing the right type of fan is crucial. This blog is all about helping you understand the difference between centrifugal fans and axial fans, so you can decide which one fits your needs. Whether you are planning HVAC systems, improving indoor air quality or looking to upgrade your ventilation setup in Dubai, this guide will walk you through the working principles, benefits, uses and key factors to consider when selecting the right fan. By the end, you will have a clear idea of which fan works best for your space and requirements.

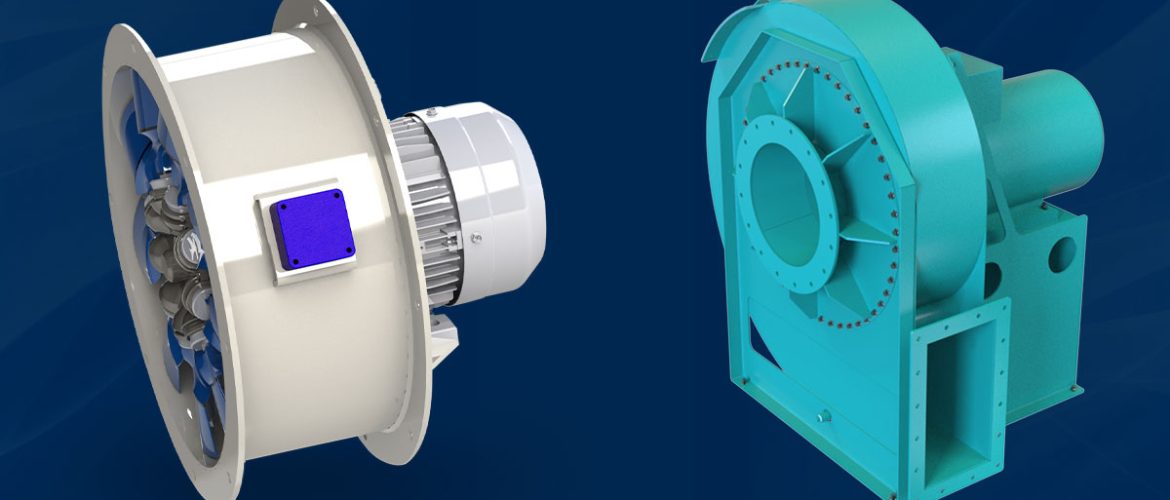

What Are Centrifugal and Axial Fans?
Before we get into the comparison, let’s first understand what each type of fan is and how it works.
Centrifugal Fans:
Centrifugal fans (also known as blowers) move air using the force generated by spinning impellers. The air enters the fan near the center of the wheel and is pushed outward by centrifugal force.
- Air moves at a right angle (90°) to the intake.
- Typically used when air pressure needs to be high.
- Common in HVAC systems, ducted ventilation and industrial setups.
Axial Fans:
Axial fans move air along the axis of the fan, which means air comes in from one side and goes out the other in a straight line.
- Air moves parallel to the shaft (axis) of rotation.
- Known for moving large volumes of air at low pressure.
- Found in cooling systems, exhaust fans and ventilation for open spaces.
Key Differences Between Centrifugal and Axial Fans
Here’s a breakdown of the major differences:
| Feature | Centrifugal Fan | Axial Fan |
| Airflow Direction | Perpendicular (90° turn) | Straight (in line with the axis) |
| Pressure | High pressure | Low to medium pressure |
| Air Volume | Moderate to high | High |
| Size | Usually larger, more complex | Compact and simple |
| Energy Efficiency | Slightly less efficient | More energy-efficient for large air volume |
| Noise | Quieter at low speeds | Can be louder |
| Applications | HVAC systems, dust collection and industrial plants | Ventilation, cooling towers and kitchens |
When to Use Centrifugal Fans
Centrifugal fans are the better option when:
- You need to move air through ducts or against resistance.
- The system requires higher static pressure.
- Air must be filtered or directed to different areas.
- You’re dealing with dusty, dirty or contaminated air.
Common Applications in Dubai:
- Commercial buildings with centralized air systems.
- Industrial plants handling fumes or dust.
- Parking garages need CO extraction.
- Warehouses and production floors.
In Dubai, where air conditioning is vital and dust from desert winds can accumulate, centrifugal fans help maintain air quality and efficient airflow in enclosed environments.
When to Use Axial Fans
Axial fans are more suitable when:
- You need to move large volumes of air in a short time.
- The system has minimal resistance or short ducts.
- Ventilation is required in open or semi-open spaces.
- Cost and space are limited.
Common Applications in Dubai:
- Kitchen exhausts are used in restaurants and homes.
- Cooling systems in data centers or machinery.
- Smoke ventilation in open corridors or tunnels.
- General ventilation in malls, airports and event halls.
Given Dubai’s high temperatures, axial fans are often used for rapid cooling and fresh air circulation in both commercial and hospitality sectors.
Pros and Cons at a Glance
Centrifugal Fans
Pros:
- High-pressure performance.
- Great for ducted systems.
- Handles dust and debris well.
Cons:
- Larger and heavier.
- Higher energy use.
- More complex installation.
Axial Fans
Pros:
- High airflow rates.
- Simple and compact.
- Energy-efficient.
Cons:
- Poor performance in high-pressure systems.
- Not ideal for dirty air environments.
Factors to Consider Before Choosing
Before making your decision, ask yourself the following:
1. What’s the Purpose of the Fan?
Is it for general ventilation, cooling or moving air through a duct?
2. How Much Pressure Is Needed?
If the system has many bends or filters, you will need higher pressure (centrifugal fan). If it’s open and free-flowing, axial fans work well.
3. Space Constraints
Centrifugal fans may need more room, while axial fans can be mounted on walls or ceilings easily.
4. Energy Usage
If saving power is your top priority and resistance is low, axial fans are more efficient.
5. Maintenance
Centrifugal fans might require more attention, especially in dusty environments.
6. Budget
Axial fans are generally more affordable and easier to install.
Trending Technologies and Innovations
In Dubai’s fast-developing market, businesses and facilities are focusing on smart, sustainable HVAC solutions. Here’s what’s trending:
- EC (Electronically Commutated) Fans: More efficient and quieter versions of both axial and centrifugal fans.
- IoT-Enabled Monitoring: Smart controls help monitor fan performance remotely.
- Noise Reduction Designs: Especially important in hospitality, healthcare and luxury real estate.
- Corrosion-Resistant Materials: Fans made for the Gulf climate withstand humidity, dust and salt-laden air.
Environmental Impact and Energy Efficiency
With Dubai’s commitment to green building standards like Estidama and Dubai Green Building Regulations, energy-efficient fans are more important than ever.
- Axial fans help reduce overall power use in non-restrictive systems.
- Centrifugal fans, when paired with variable speed drives, offer flexibility and power savings.
Choosing the right fan can significantly lower your carbon footprint and utility costs and this is something that matters in both industrial and residential environments in the UAE.
Conclusion
To sum up, choosing between a centrifugal fan and an axial fan comes down to your specific application, space constraints and airflow needs. If you are working in a high-pressure system with long ducts or dirty air, centrifugal fans are ideal. For simpler, open-area airflow or cost-sensitive projects, axial fans offer better performance and savings.
At rapidcool, we understand the importance of choosing the right ventilation equipment customized for Dubai’s unique climate and building standards. Whether you are designing a system for a commercial property, industrial plant or residential tower, we can guide you to the best fan system to meet your needs.
Let us help you keep your air flowing efficiently and cleanly.
